| 主要技术参数 | Main technical parameters | ||
| 规格 | 参数 | specifications | parameter |
| 洗涤加热方式 | 蒸汽或电加热 | Washing heating mode | Steam or electric heating |
| 最大洗涤量 | >8000碟/小时 | Maximum washing capacity | >8000 discs/hour |
| 最大洗涤高度 | 300MM | Maximum washing height | 300MM |
| 耗水量 | 350-400L | Water consumption | 350-400 |
| 水箱容积 | 168L | The tank volume | 168L |
| 洗涤温度 | 60-80℃ | Washing temperature | 60-80℃ |
| 漂洗温度 | 65-80℃ | Rinse temperature | 65-80 |
| 洗涤周期 | 120-150S | The washing cycle | 120-150S |
| 排水管径 | DN50 | Drainage pipe diameter | DN50 |
| 进水管径 | DN15 | The water pipe diameter | ON15 |
| 电气总功率 | 89.2KW | Total electrical power | 89.2KW |
| 蒸汽总功率 | 11.2K | Total steam power | 11.2KW |
| 产品规格 | 7000*1080*1650 | Product specification | 7000*1080*1650 |
清洗烘干一体式洗碗机PFS-7000-1的工作方式是入口处的人把待洗的餐具放到洗碗机的传送带上,洗碗机自动
清洗消毒
◆豪华外观,全食品级304不锈钢制造,内部结构合理,外形美观大方。
◆独立的排水系统,可直接排到预设的排水沟,不会污染地面,既卫生又环保。
◆变频调速输送带洗涤速度可任意调节,以适应不同食器的清洗要求。
◆洗涤温度采用智能化控制系统,维护更方便满示操作一目了然
◆工作程序采用微电脑集中控制,大屏幕蓝色背光中文
◆长龙履带式结构,占地空间小,性能稳定,安全可靠。
◆以上参数以6寸盘为举例说明，以实际情况为准
◆图片仅供参考,以实物为准。

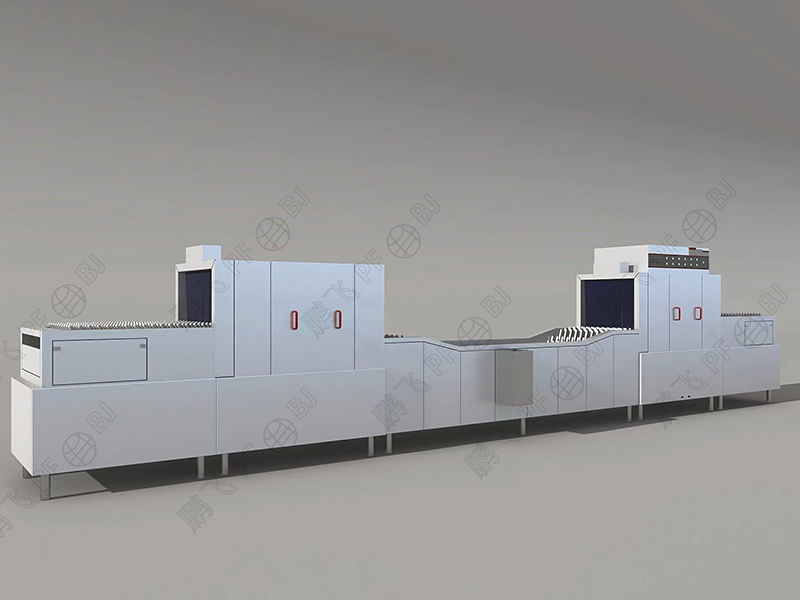

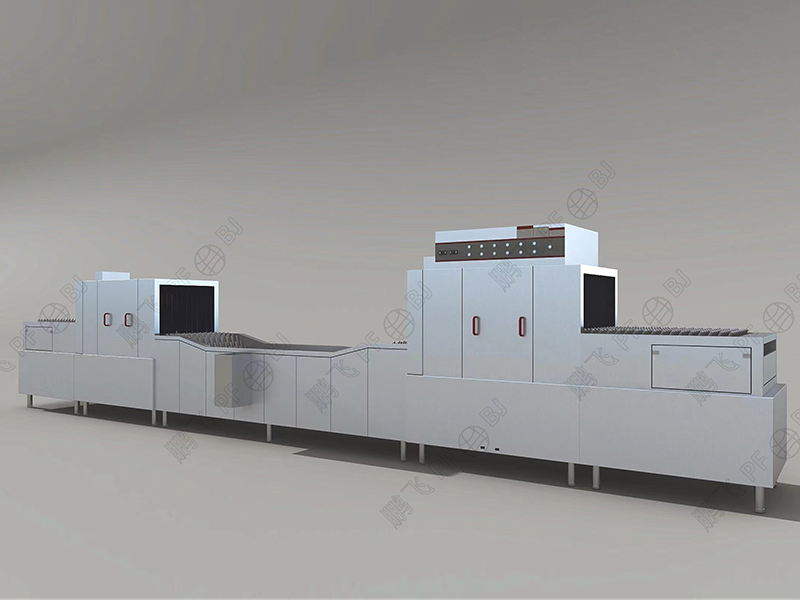

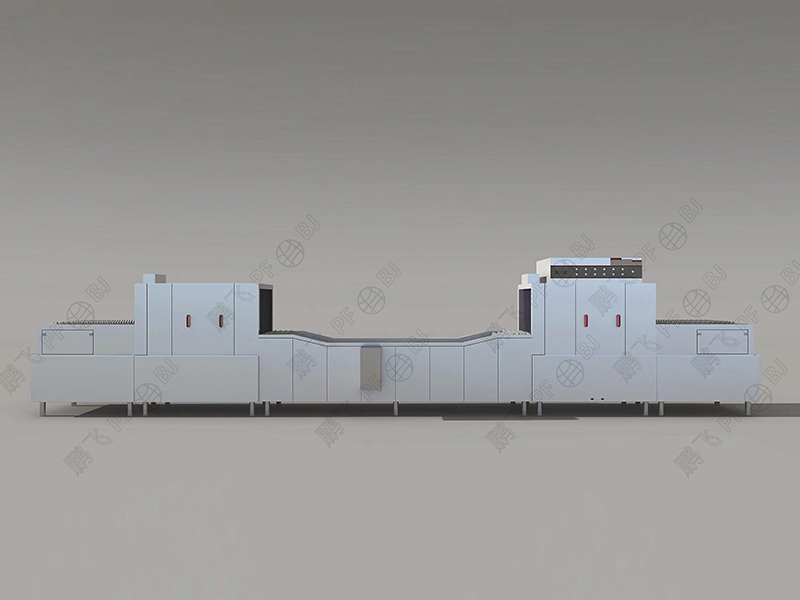

Drying Dishwasher The way PFS-7000-1 works is for people at the entrance to place the dishes on the conveyor belt of the dishwasher, which automatically
Cleaning and disinfection
◆ luxury appearance, all-food grade 304 stainless steel manufacturing, reasonable internal structure, beautiful appearance.
◆ independent drainage system, can be directly discharged to the preset drainage ditch, will not pollute the ground, both sanitary and environmental protection.
◆ frequency conversion speed regulating conveyor belt washing speed can be arbitrarily adjusted to meet the cleaning requirements of different food utensils.
◆ washing temperature using intelligent control system, maintenance more convenient full operation at a glance
◆ working procedure adopts microcomputer centralized control, large screen blue backlight Chinese
◆ long-dragon crawler structure, small space, stable performance, safe and reliable.
◆ the above parameters to 6 inch disk as an example, the actual situation shall prevail
◆ pictures are for reference only, subject to physical objects.
